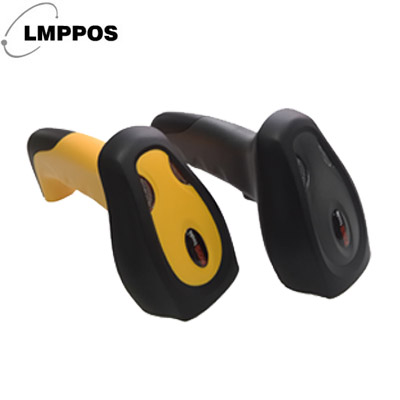

Barcode Scanner

  • Model:LMP-L1
  • Sealing:IP54
  • Depth of Field:1.8m
  • Decode Speed :200 scan/sec
  • Product description: barcode scanner,handheld scanner,barcode reader,usb barcode scanner,handheld barcode scanner


1. 32bit decode,5mil resolution

2. Newly design ,fashionable and portable

3. Full quakeproof and anti-knock design with 1.8M drops;

4. Compatibility with RS232, PS2 keyboards as well as USB interface.

5. USB port support Wins and Mac OS,and android OTG phone.

Wired barcode scanner Specification:

Power DC 5V±0.25V
Color Yellow&Black
Current 25 mA(operation)-95mA
Light Source 650nm lazer
Depth of Field 1.8m
Lazer Lever China GB Class II, EN60825-1
Decode Speed 200 scan/sec
Scanning Angle ±60°,±65°,±42° (Skew,Pitch,Roll)
Resolution 5mil

UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN,39 code,39 code(ASCII),Cross 25 code,

Industry 25 code, Matrix 25 code, Codabar, 128 code,93 code,11 code,

cMSI/Plessey, UK/Plessey, UCC/EAN 128,GS1 DataBar ect.

Indicator buzzer,LED
Port USB, PS2, RS-232,USB-COM
Usage Handheld manual/Auto
Material ABS+PC/TPU(scanner),PC(Led light)
Temperature 0°C-45°C(operation), -40°C-60°C(storage)
Humidity 5%-90%
Sealing IP54
Drop Unit functions normally after repeated -6.5ft.(2m)drops to concrete
